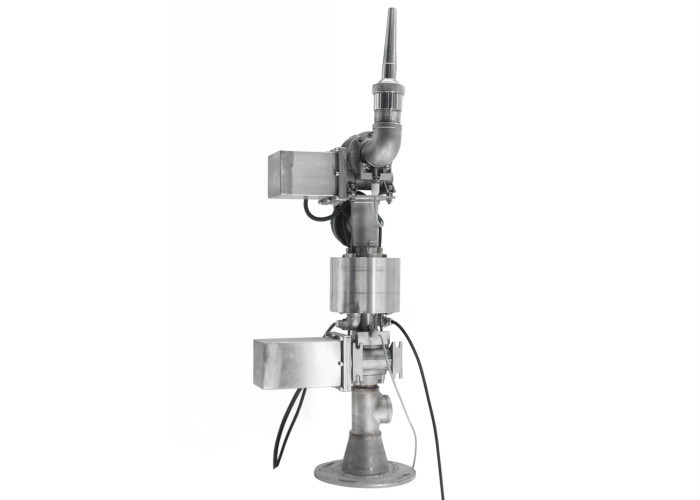

360 Degree Rotating 2D Fountain Nozzle Stepper Motor Gearbox Swing
Machine for Musical Water Fountain
Product information
►Has obtained national patent certification.
►The reducer adopts 304 integrated precision casting, the whole
reducer body is integrated into one molding, the worm, worm wheel
installation part and motor assembly flange are CNC one-time
clamping processing; avoiding the traditional way the fuselage is
composed of several accessories Due to the processing precision and
the assembly and fitting reasons, each accessory has different
degrees of different heart and different axis phenomena, which
fully guarantees the precision and waterproof performance of the
reducer.
►Rotary fine-tuning base installation design, the one-dimensional
nozzle base adopts arc-shaped hole fixed design, with the
installation bottom plate, can be installed in the fountain,
fine-tuning the nozzle angle when debugging, solving one row of
linear one-dimensional or arc The one-dimensional adjacent nozzle
water column fights each other, which affects the performance
effect.
►The nozzle rotates at an angle of 360 degrees and the body is made
of stainless steel 304, which is extremely resistant to corrosion.

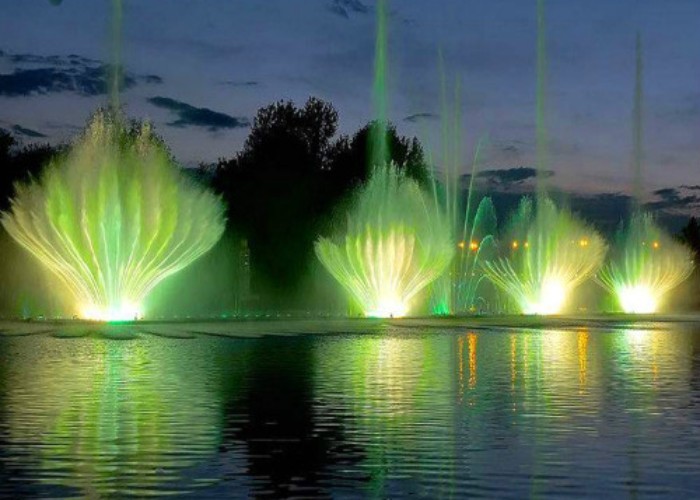

It is widely used in various dance fountains, making the fountain's
visual effects stunning, energetic and jumping.
Product parameters
| Item | Connection Size(mm) | Length*Width*Height(mm) | N.W. (Kg) | Stepping Motor Reduction Ratio | Voltage of Stepping Motor | Power of Stepping Motor | Voltage of Transducer | Electric Phase of Stepping Motor | Max Torque of the Upper Stepping Motor | Max Torque of the Lower Stepping Motor | Price(USD) | Material | The Waterproof Cable |
| HXSK2D-50B | DN50 | 340×370×800 | 38.8 | 1:10 | AC55V-70V | 300W | DC 24V | Two-phase Electric Machine | 8(N.M) | 12(N.M) | 1355.52 | SUS304 | for Stepping Motor JHS 4*2.5mm2 for Transducer JHSP 3*1.0mm2 |
Our service
►Design a fountain program free of charge by a senior design team.
►Reasonable and detailed quotation based on the client's budget.
►Provide overseas installation services. We have the most
professional installation team, they have been in the industry for
more than ten years.
►One-on-one technical guidance, we provide relevant technical
videos for our customers, and dispatch professional technicians to
guide customers. And provide lifelong technical consulting
services.
►The warranty period is two years. If there are any non-human
problems within two years, please contact us in time and we will
solve it for you immediately.
