    Customized Digital Dancing Fountain Nozzle , 3d Fountain Nozzle Long Life

    Ask Lasest Price
    Brand Name : HUAXIN
    Model Number : 2D swing nozzle
    Certification : CE, RoHS
    Price : USD1476/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per week
    Delivery Time : 15-30 days
    • Product Details
    • Company Profile

    Customized Digital Dancing Fountain Nozzle , 3d Fountain Nozzle Long Life


    2d nozzle fountain customized digital fountain nozzle 3d fountain nozzle


    1. Material:304 stainless steel

    2. Nozzle diameter (mm):DN50

    3. Length * width * height (mm):340*370*750

    4. Net weight (Kg):30.6

    5. Upper dimension reduction ratio:1:10

    6. Lower dimensional reduction ratio:1:10

    7. Stepper motor voltage:AC55V-70V

    8. Stepper motor power:300W

    9. Stepper motor phase number:Two phase
    10. Upper dimension stepper motor maximum torque:Brown-24V blue-GND yellow-return to zero signal




    Customized Digital Dancing Fountain Nozzle , 3d Fountain Nozzle Long Life

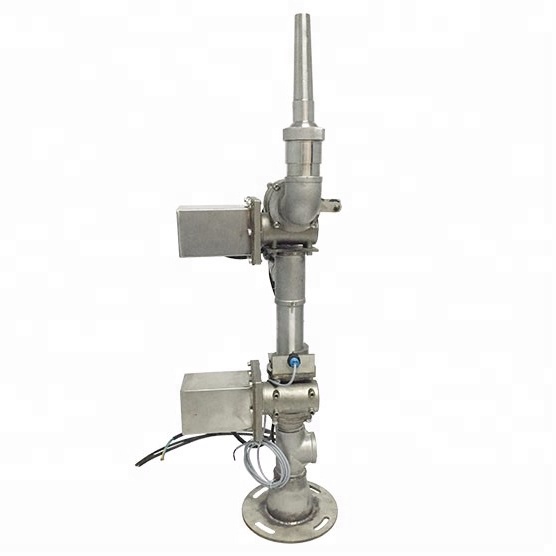

    The two-dimensional nozzle consists of two reducers and two stepping motors, the water inlet and the water outlet. The working principle is to make the worm shaft of the worm gear reducer hollow, and the water inlet is connected to the shaft of the lower dimension reducer through the seal. The output shaft of the lower dimension reducer is connected to the upper dimension water inlet through the elbow, the upper worm wheel output shaft is fixed with an elbow, and the upper dimension stepping motor rotates with the elbow to rotate, which can be rotated 360 degrees, and the lower dimension can also be rotated 360 degrees, the two-dimensional nozzle is applied to the fountain waterscape, which is of great ornamental value.
